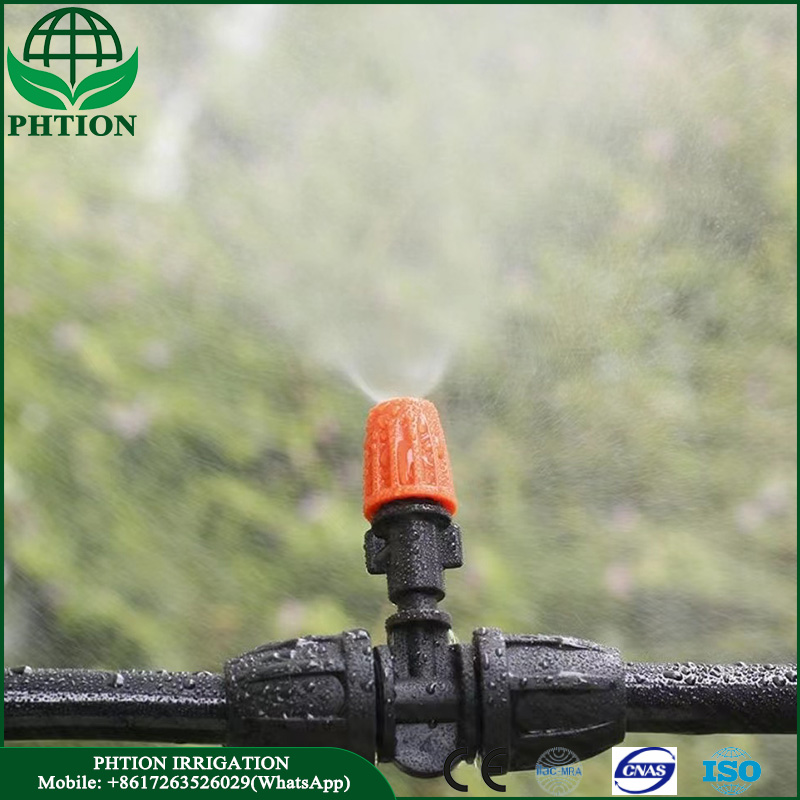

Atomizing Sprinkler

Atomizing Sprinkler

Atomizing sprinkler disperse liquid into small droplets to form a uniform mist spray, achieving uniform spraying or atomization of liquid. They are widely used in irrigation, fertilization, insecticide, etc.

    • 1.Droplet size: 15-60 microns
    • 2.Water flow rate: 10 -40 L/hr
    • 3.Sprinkler diameter: 0.3-1 meter
    • 4.Working pressure: 0.3-0.7 Mpa

E-mail: [email protected]            Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated                         ✧Global Transportation Service
✧Free samples& Free Design                             ✧Full Satisfaction Guaranteed: 5 Years

Category:

✦Description of Atomizing Sprinkler

Atomizing sprinklers come in various forms. Their principles are mainly based on fluid mechanics and pressure control. Through specific design and structure, liquid is converted into fine droplets for spraying. Atomizing sprinklers are usually connected to pressure systems such as water pumps or compressed air systems. By increasing the pressure inside the liquid, the liquid can obtain sufficient kinetic energy in the nozzle. The nozzle part of the atomizing sprinkler is carefully designed with smiling holes or special shapes. This design can guide the liquid to break up at high speed to form fine droplets. When high-pressure liquid flows through the nozzle, due to the sudden reduction in cross-section, the liquid will be subjected to strong shear force and turbulence, causing the droplets to break up and form atomization. Atomizing sprinkler can be divided into pressure atomization, rotary atomization and ultrasonic atomization according to the way they achieve atomization. Pressure atomization is one of the most common atomization methods. It forms a high-speed jet at the nozzle by increasing the pressure, and forms atomization under the action of air resistance and shear force. The rotary atomization is also a common choice in agriculture. The liquid is guided to the rotating parts inside the nozzle, thrown out under the action of centrifugal force, and broken into droplets. The rotary atomizing nozzle can form a more uniform distribution of droplets.

✦Advantages of atomizing sprinklers

1. Improve utilization efficiency. Atomizing sprinklers can evenly sprinkle liquid on the surface of crops, improving the utilization efficiency of pesticides, water and fertilizers. 2. Reduce waste: Because the droplets are small and uniform, the loss and waste during the spraying process are reduced. 3. Improve the effect of the method: small droplets are easier to penetrate the surface of crops, improving the prevention and control effect of pesticides. 4. Reduce environmental pollution. Atomization helps reduce the dispersion of pesticides in the air and the deposition in the soil, reducing pollution to the environment. [contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of Atomizing Sprinkler

Nozzle Size (mm) Droplet Size (mm) Working Pressure(KPa) Flow Volume(m3/h)  Irrigation Diameter(m)
0.1 15-60 0.3-0.7 10-20 0.3-1
0.2 15-30 0.3-0.8 10-20 0.3-2
0.3 25-40 0.3-0.9 15-30 0.3-3
0.4 30-60 0.3-0.10 15-30 0.3-4
0.5 30-60 0.3-0.11 20-40 0.3-5
Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Applications of Atomizing Sprinkler

Atomizing sprinklers are widely used in spraying pesticides, fertilizers, insecticides, etc. due to their good water and fertilizer utilization efficiency and improvement of the environment. They can also be used in greenhouses, indoor nurseries, gardens and other scenes.

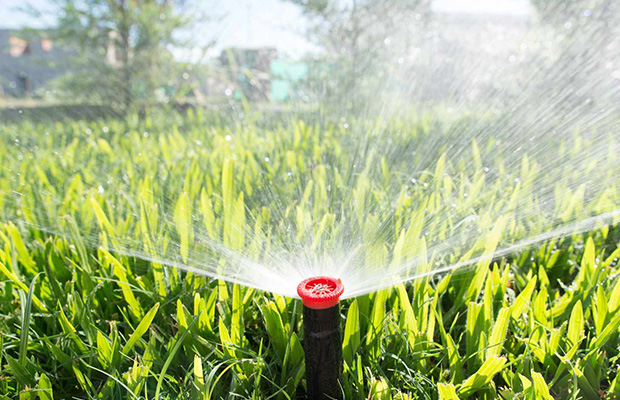

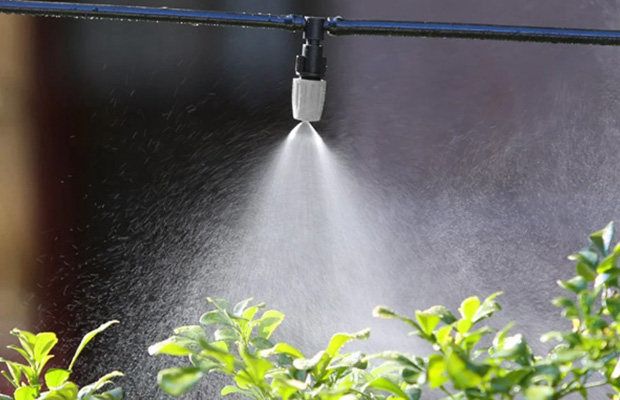

Atomizing Sprinkler Atomizing Sprinkler
Atomizing Sprinkler for Nurseries Atomizing Sprinkler for Greenhouses

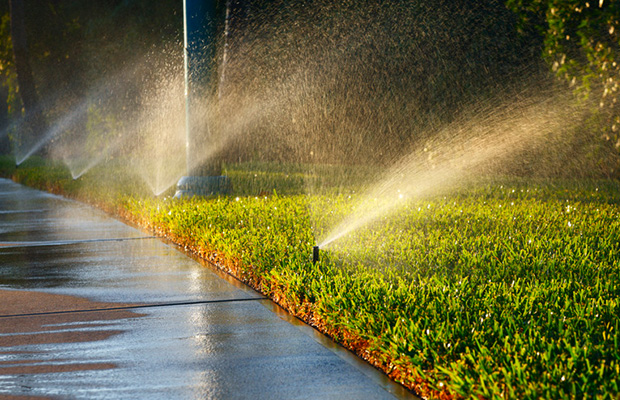

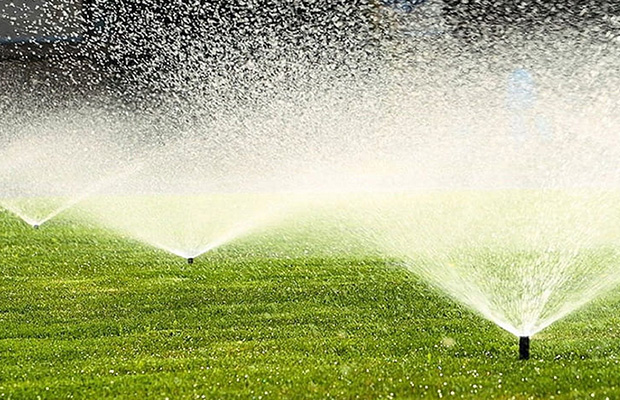

Atomizing Sprinkler Atomizing Sprinkler
Atomizing Sprinkler for Farmland Atomizing Sprinkler for Landscaping
