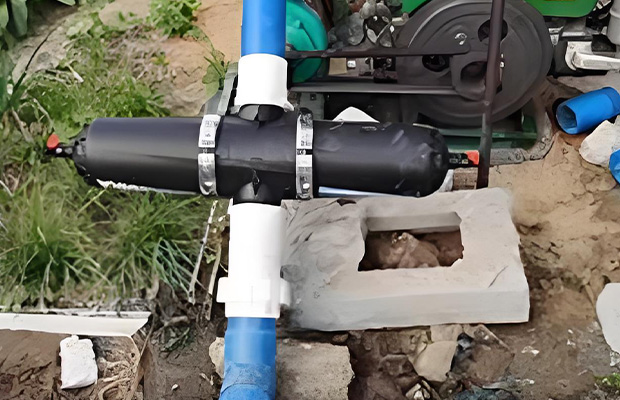

Double Head Filter

The appearance of the double-head filter is cross-shaped. This series of filters can be divided into automatic, backwash, laminated filters and mesh filters. It can be used for automatic backwash filtration system.

1.size: total length 940㎜, 1180㎜;
2.Flow rate: (m³/h): 60, 90;
3.Delivery time: depends on the total quantity: 10-20 days.
4.Minimum order quantity: 1 piece

✉ E-mail: [email protected] ☎ Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5 Years

[email protected] +8615515596408

Category: HDPE Pipeline System

✦Description of Double Head Filter

‌Double-head filters are mainly used to filter water in irrigation systems to prevent impurities from entering the irrigation system, thereby protecting the normal operation of the irrigation system. ‌This filter usually includes two filter mesh pipes, each of which is equipped with an inlet valve, a filter mesh and a drain valve. The double-net pressure difference is used for backwashing, and irrigation can be carried out continuously, that is, automatic backwashing while irrigation. ‌Specifically, the double-head filter includes a tank body, an inlet pipe, an outlet pipe and a drain pipe. A pressure difference switch and an outlet pipe are provided on the tank body, and two filter mesh pipes are provided between the inlet pipe and the drain pipe. An inlet valve, a filter mesh and a drain valve are provided on each filter pipe. This design allows the filter to use the double-net pressure difference for backwashing, with a high degree of automation and a large processing capacity. It can clean and drain by itself and irrigate continuously, with better automatic cleaning effect and a wide range of applications. ‌ In the irrigation system, the main function of the double-head filter is to prevent impurities from entering the irrigation system and protect drippers and other equipment from being blocked. It can effectively remove impurities, microorganisms, dust, sand particles, etc. in the water to ensure the quality of irrigation water. In addition, the double-head filter can also reduce the maintenance times of the irrigation system, extend the service life of the equipment, and improve the irrigation efficiency.

✦Advantages of the double-head filter

1.Efficient backwashing. The double-head filter has an efficient backwashing function and can automatically perform backwashing operations to ensure continuous water discharge and low system pressure loss, thereby extending the filtration cycle and service life. 2.Fully automatic continuous operation without manual intervention reduces operating costs and maintenance workload. 3.Small footprint, modular design allows multiple filters to be flexibly combined to meet irrigation needs of different scales. 4.Reliable operation and low self-water consumption further reduce operating costs and maintenance costs.

Please Send Email: [email protected] or Mobile(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Technical Data

✦Specification of double-head filter

B	H	FLOW RATE(m³/h)	LAMINATION	SCREEN FILTER	AUTOMATIC BACKWASH
3″BSP	940	60	√	√	–
3″VIC	940	60	√	√	–
3″BSP	1180	90	√	√	√
3″VIC	1180	90	√	√	√
4″BSP	940	60	√	√	–
4″VIC	940	60	√	√	–
4″BSP	1180	90	√	√	√
4″VIC	1180	90	√	√	√

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Application of double-head filter

The application of double-head filters is mainly reflected in its ability to ensure continuous production and efficient filtering effects. ‌ Double-head filters are usually composed of two independent filters, which can be switched to each other, so that when one filter is cleaned, the other can continue to work, ensuring the continuous operation of the system‌. The application scenarios of double-head filters include but are not limited to the following aspects: 1.Farmland, green irrigation: Filter the water used to irrigate plants in farmland green belts to ensure the healthy growth of plants. 2.Public places and waterscape design: In public places such as fountains, landscape pools, etc., double-head filters are used for simple purification of water quality to keep the waterscape clean and beautiful. 3.Daily life water treatment: Double-head filters can be used for simple filtration of daily life water and some process water to ensure the safety and cleanliness of water quality. 4.Industrial water treatment: In industry, double-head filters can be used to reuse cooling water and filter cooling water after multiple uses, thereby saving costs.


Double-head filter for greenhouse irrigation	Double-head filter for greening irrigation

Double-head filter for farmland irrigation	Double-head filter for water treatment
