Detailed description of HDPE hot melt butt fittings:

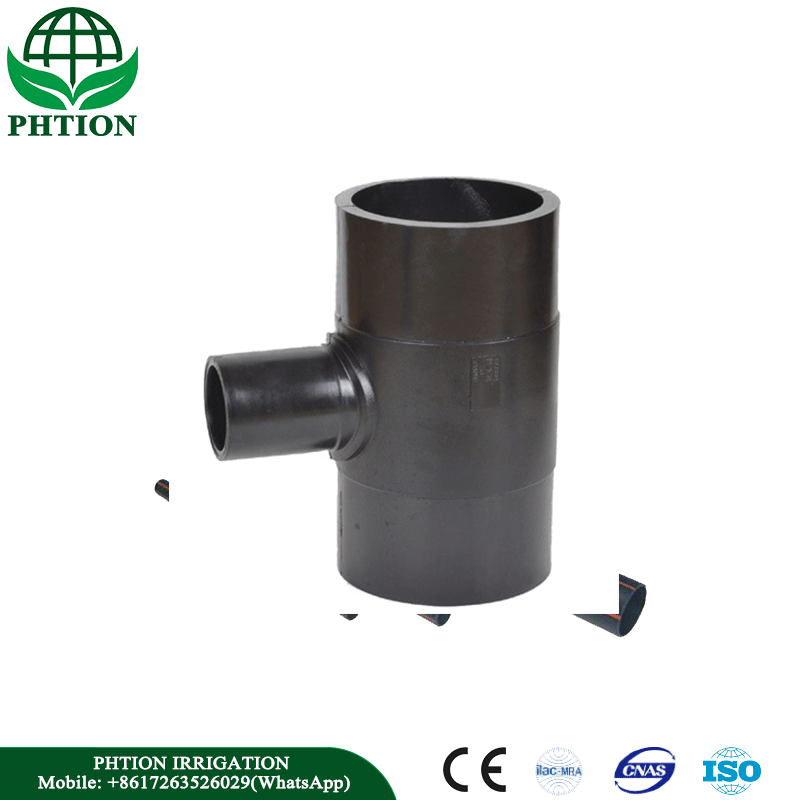

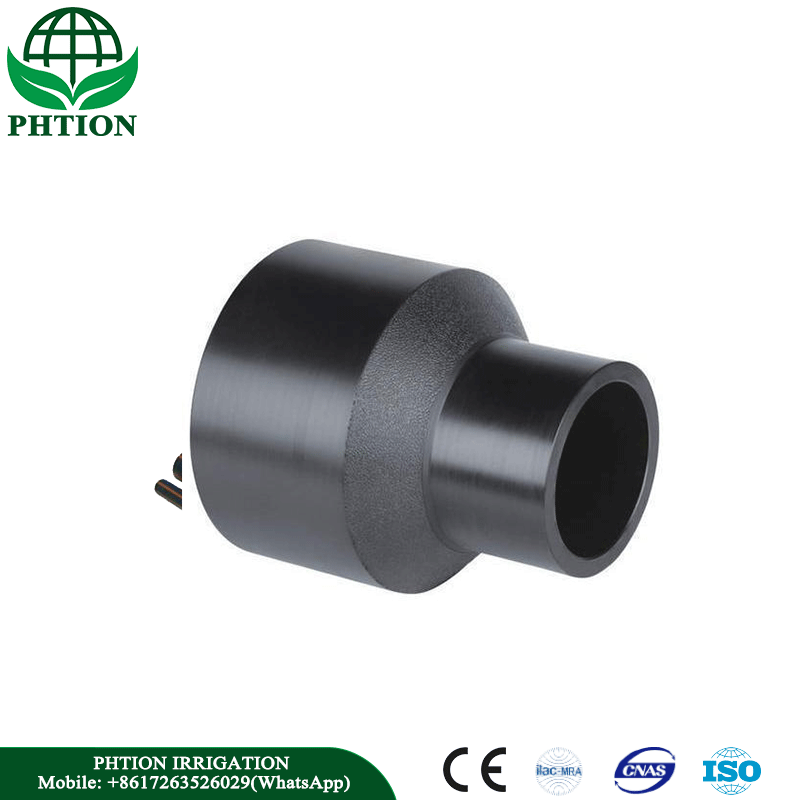

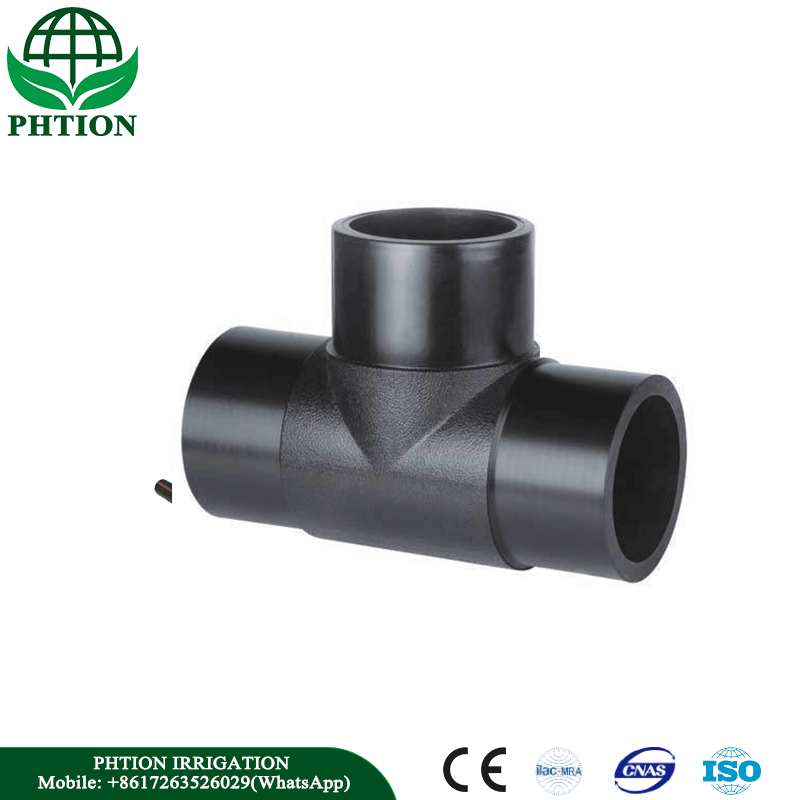

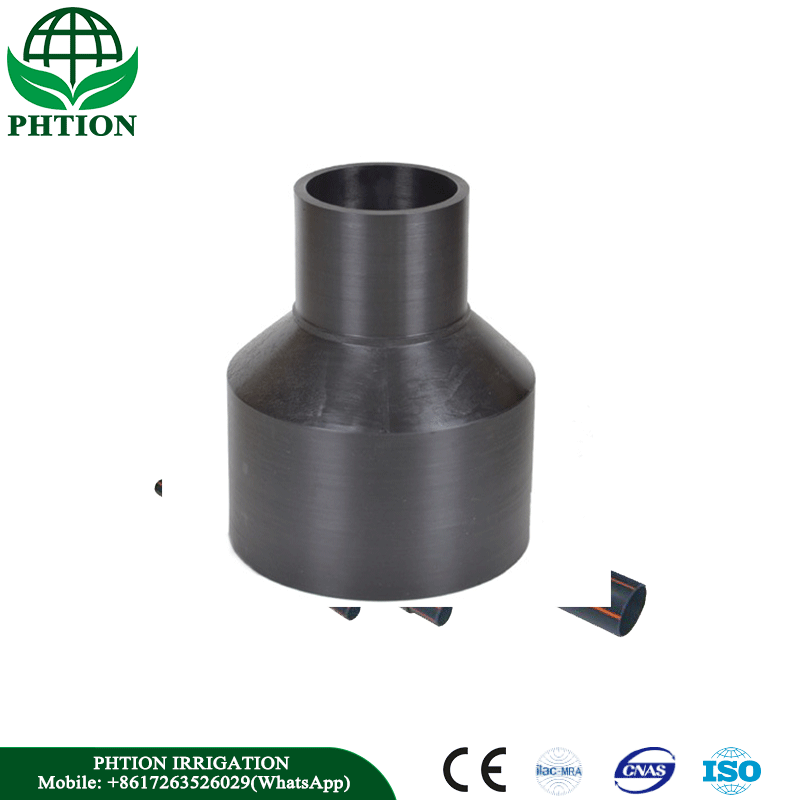

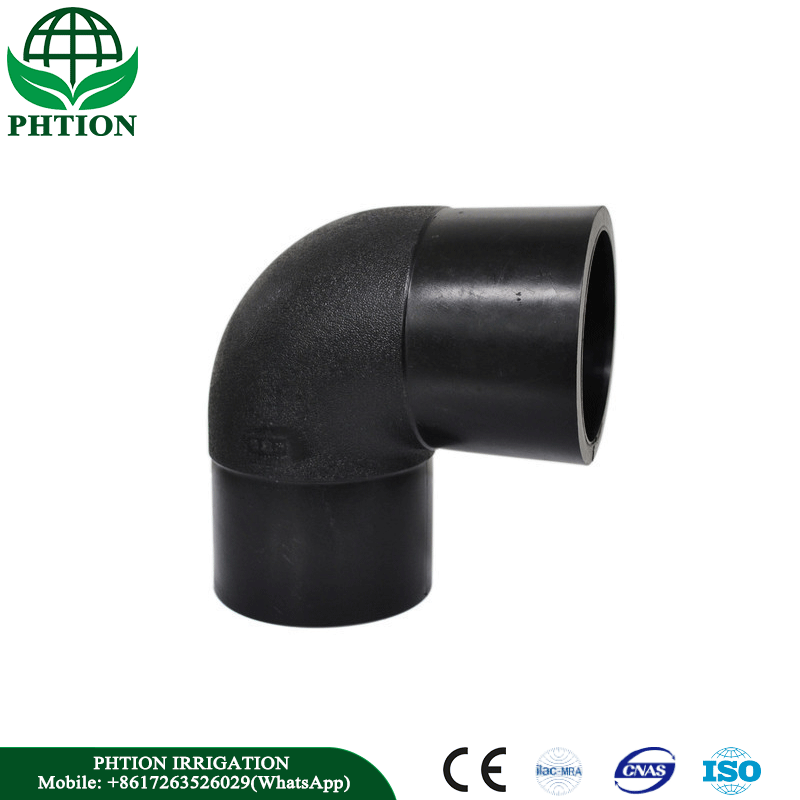

HDPE hot melt butt fittings include equal diameter straight, reducing diameter straight, flange, tee, elbow, joint, etc.

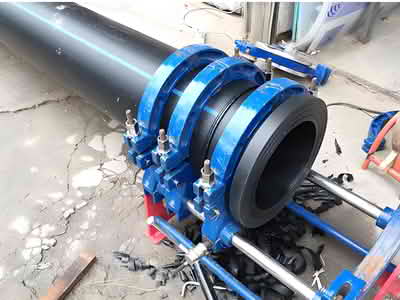

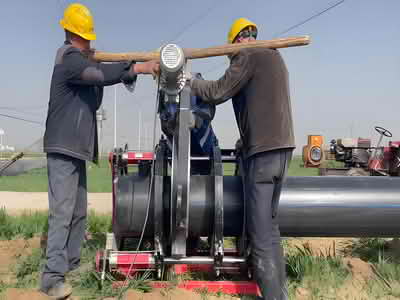

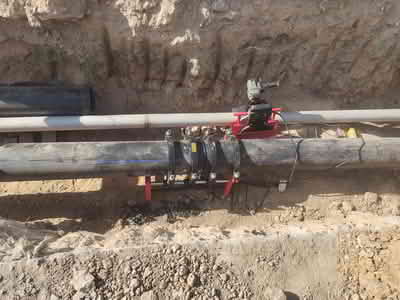

During the hot-melt butt welding process of HDPE hot-melt butt fittings, the ends of the pipe and fittings to be connected are first cleaned, and then heated by the heating plate of the hot-melt butt welding equipment. When a certain temperature (usually between 210-230℃) is reached, the surface of the material begins to melt, forming a uniform molten layer. Then, the heating plate is quickly removed, the fittings are tightly butted against the molten ends of the pipe, and a certain pressure is applied to fuse the molten materials. Under the action of pressure, the molecular chains in the molten layer diffuse and entangle with each other, and a strong connection joint is formed after cooling. This connection method makes the connection strength between the fittings and the pipe higher than the strength of the pipe itself, thereby ensuring the reliability and stability of the entire pipeline system.
Features and advantages of HDPE hot melt butt fittings:
Good sealing:
Through the
hot melt butt connection method, the pipe fittings and the pipeline form a whole, without gaps or leakage points,
which can effectively prevent fluid leakage and ensure the sealing and safety of the pipeline system.
High strength and durability:
Made of high-density polyethylene, it has excellent compressive strength and tensile
strength, can withstand greater pressure and external force, and is not easy to deform or break. At the same time,
it also has good corrosion resistance and chemical resistance, is not corroded by acid and alkali substances and
chemical media in the soil, can work stably for a long time, and the service life can reach more than 50
years.
Convenient construction:
The construction process of hot melt butt is relatively simple and easy to
master. Only by using special hot melt butt equipment and operating according to the specified process parameters,
the connection can be completed quickly, which greatly improves the construction efficiency and shortens the
construction period.
Good flexibility:
HDPE material has a certain flexibility, so that the pipe fittings can
adapt to a certain degree of terrain changes and pipeline displacement during installation, reducing the risk of
damage caused by uneven force on the pipeline. At the same time, it can also play a good anti-seismic performance
when natural disasters such as earthquakes occur.
Excellent environmental performance:
HDPE hot-melt butt
fittings are non-toxic and odorless, will not pollute the transported fluid, and meet relevant national
environmental protection standards. Moreover, HDPE materials can be recycled and reused, which is conducive to
saving resources and protecting the environment.
Low overall cost:
Due to its long service life, low maintenance
cost and high construction efficiency, from the perspective of the entire life cycle, the comprehensive cost of HDPE
hot-melt butt fittings is relatively low, with a high cost performance.
