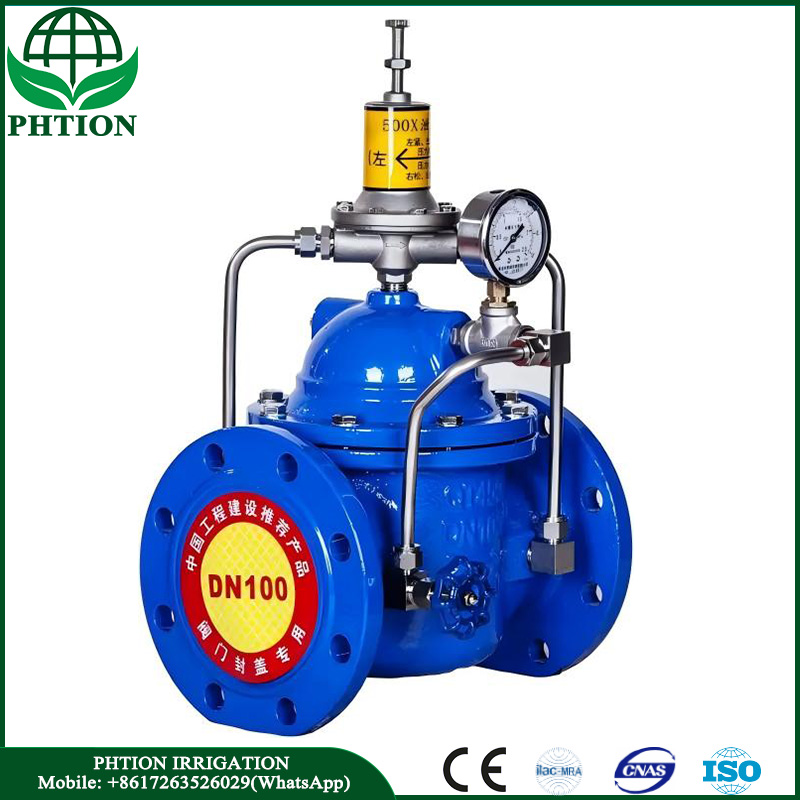

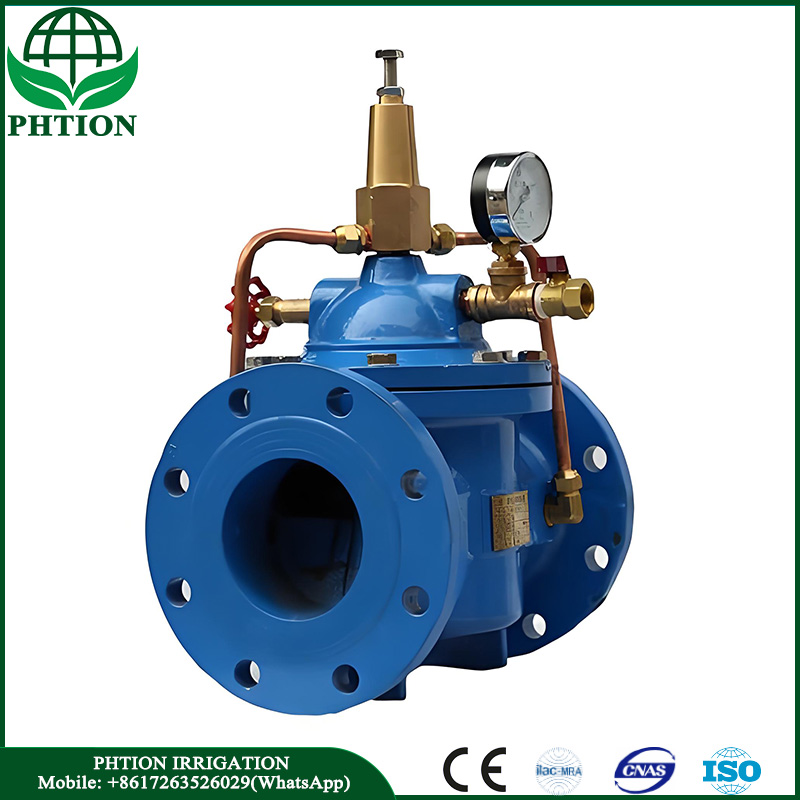

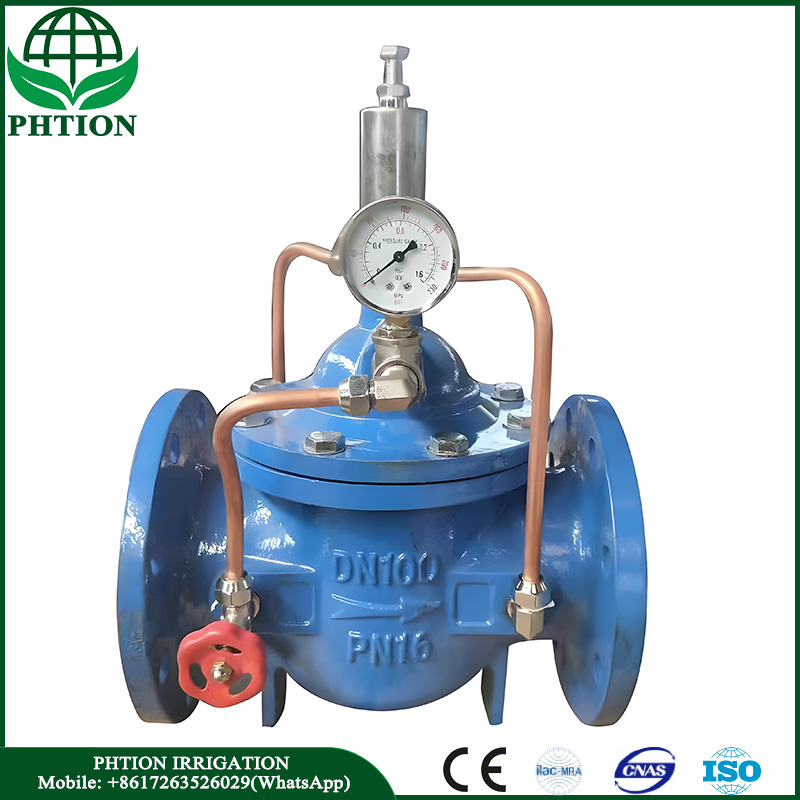

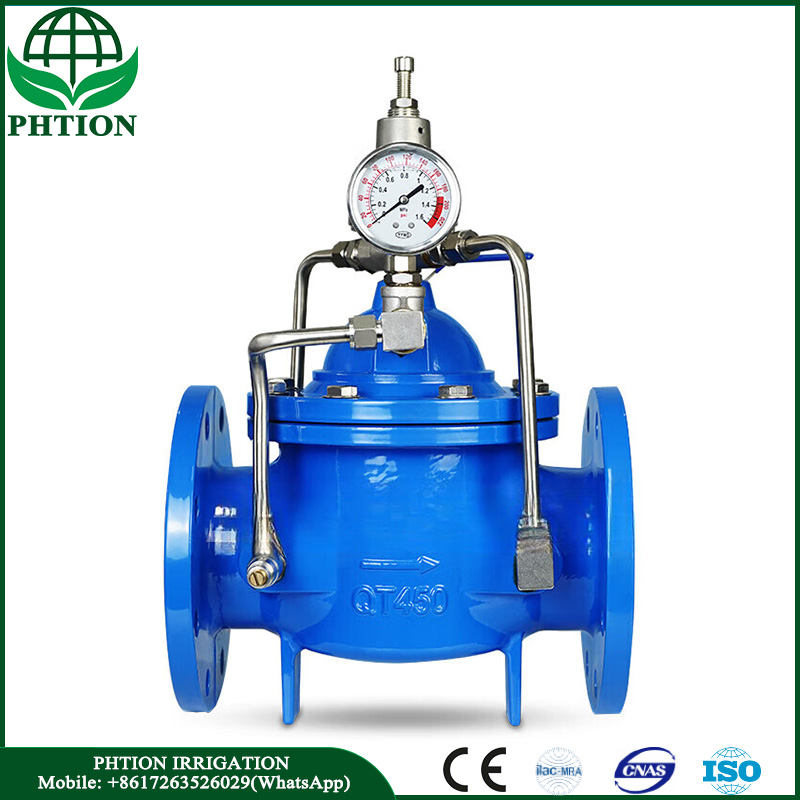

Level Control Valve

The level control valve is a valve that automatically adjusts the liquid level. It adjusts the amount of liquid flowing in or out by controlling the valve opening, thereby achieving precise control of the liquid level. It can keep the water level in the field stable and create good conditions for the growth of crops. It is widely used in agricultural irrigation, industrial production, domestic water and other fields.

- 1.Working temperature: 20%-100% (adjustable)
- 2.Sealing material: EPDM rubber
- 3.Nominal pressure: PN10/PN16/PN25
- 4. Applicable medium: normal temperature water
- 5.Valve body material: 304 stainless steel
- 6.Working voltage: 220V/380V

✉ E-mail: [email protected] ☎ Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5 Years

[email protected] +8615515596408

Category: Valves

✦Description of Level Control Valve

The level control valve is a valve used to control fluids. Its structure is similar to that of an ordinary flange, but a valve core and a valve seat are set inside. By adjusting the lifting and rotation of the valve core, the fluid can be controlled. The working principle of the level control valve is to control the flow of fluid by adjusting the valve core inside the valve. When the valve core is lifted by pressure or a manual controller, the aperture between the valve seat and the valve core will gradually increase, allowing the fluid to pass through the valve. When the valve core is in a closed state, the aperture between the valve seat and the valve core will be blocked, thereby preventing the flow of fluid. Different fluid control requirements can be achieved through different valve core shapes and control methods.

✦Advantages of Level Control Valve

1. Precise control. Hydraulic control valves can precisely control the pressure, flow, direction and other parameters in the hydraulic system, making the system work more stably and effectively. 2. Fast response. The hydraulic control valve has a fast response speed and can complete the response within milliseconds, thus meeting the requirements of high-precision control. 3. High reliability. The hydraulic control valve adopts advanced technology and materials, and the manufacturing process is precise, which can ensure long-term reliable operation. 4. Strong pressure-bearing capacity. The seals inside the hydraulic control valve are specially treated to withstand high-pressure working conditions, thereby ensuring the reliability and stability of the system. 5. Small size and high power density. The hydraulic control valve has a compact structure, small footprint, high power density, and can achieve more control in a limited space.

Please Send Email: [email protected] or Mobile(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of Level Control Valve

Nominal Diameter	Length		Flange Outer Diameter			Flange PCD
DN(mm)	Regular	Extended	PN10	PN16	PN25	PN10	PN16	PN25
50	200	248	165	165	165	125	125	125
65	235	250	185	185	185	145	145	145
80	250	285	200	200	200	160	160	160
100	285	325	220	220	235	180	180	190
125	325	340	250	250	270	210	210	220
150	360	400	285	285	300	240	240	250
200	435		340	340	350	295	295	310
250	505		395	405	425	350	350	370
300	585		445	460	485	400	410	430
350	595		505	520	550	460	470	490
400	700		565	580	620	515	525	550
450	700		615	640	670	565	585	600
500	770		570	715	–	620	650	–
600	900		780	840	–	725	770	–

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Applications of Level Control Valve

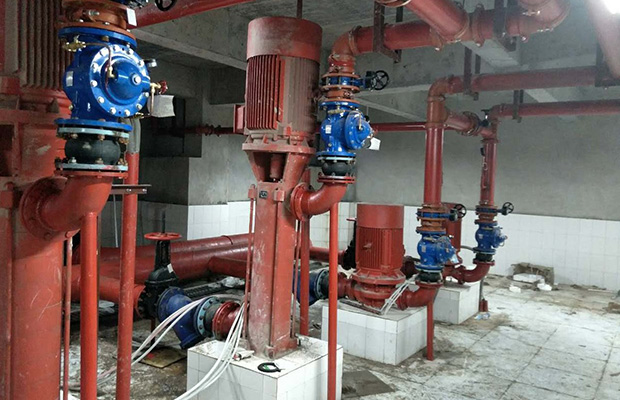

Level control valves can be widely used in the fields of industry, electromechanics, and ships. Common applications include: 1. Hydraulic system control in heavy machinery such as container cranes, scrapers, and stackers; 2. Fluid control in industrial automation equipment; 3. Hydraulic regulation and control in water conservancy projects; 4. Fluid control in fields such as oil extraction and natural gas transportation.


Level control valves for chemical industry	Level control valves for water treatment

Level control valves for oil transportation	Level control valves for HVAC
