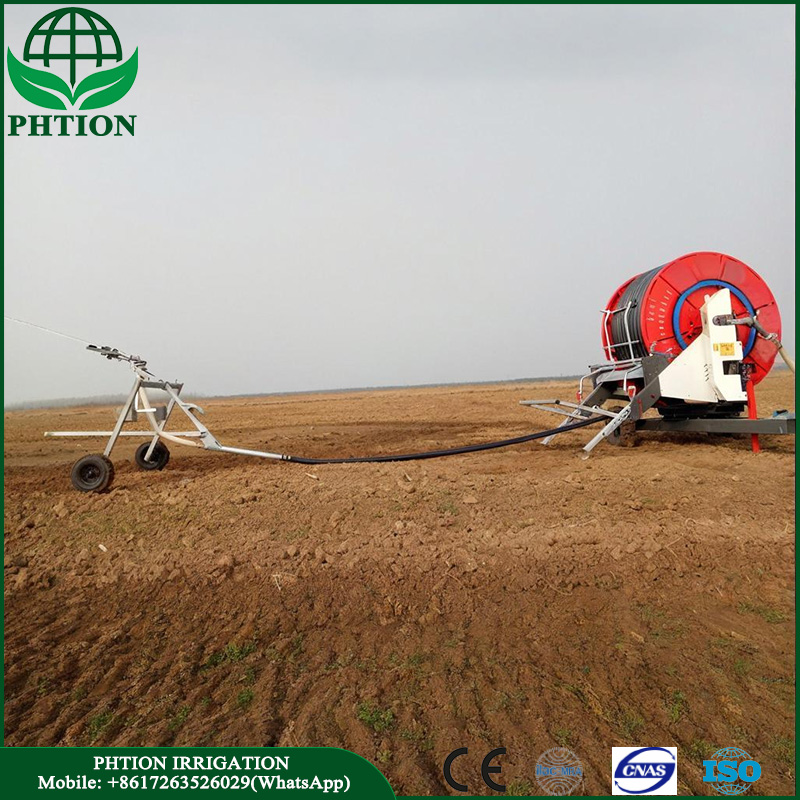

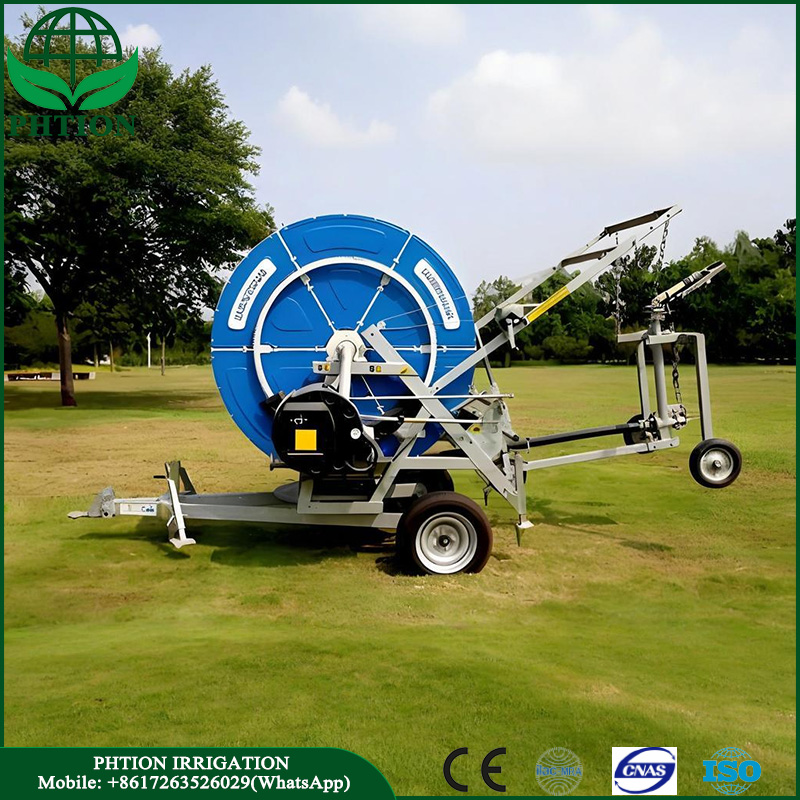

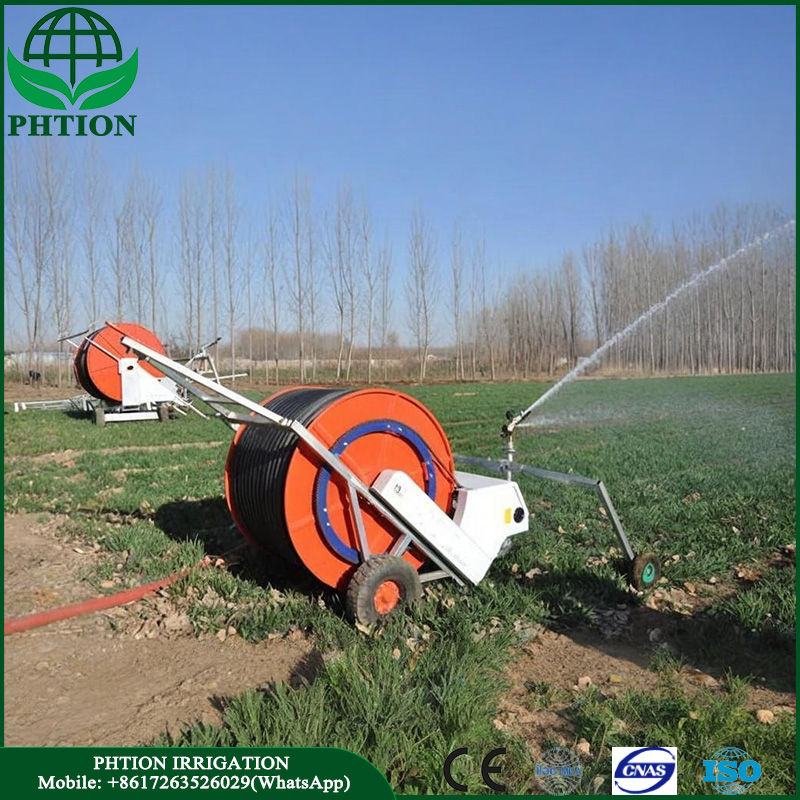

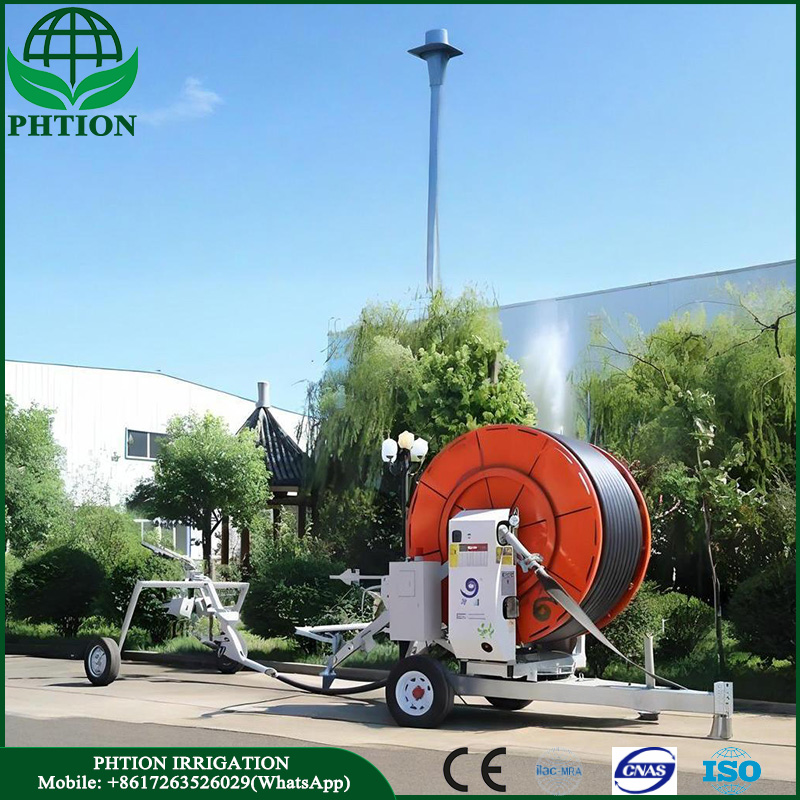

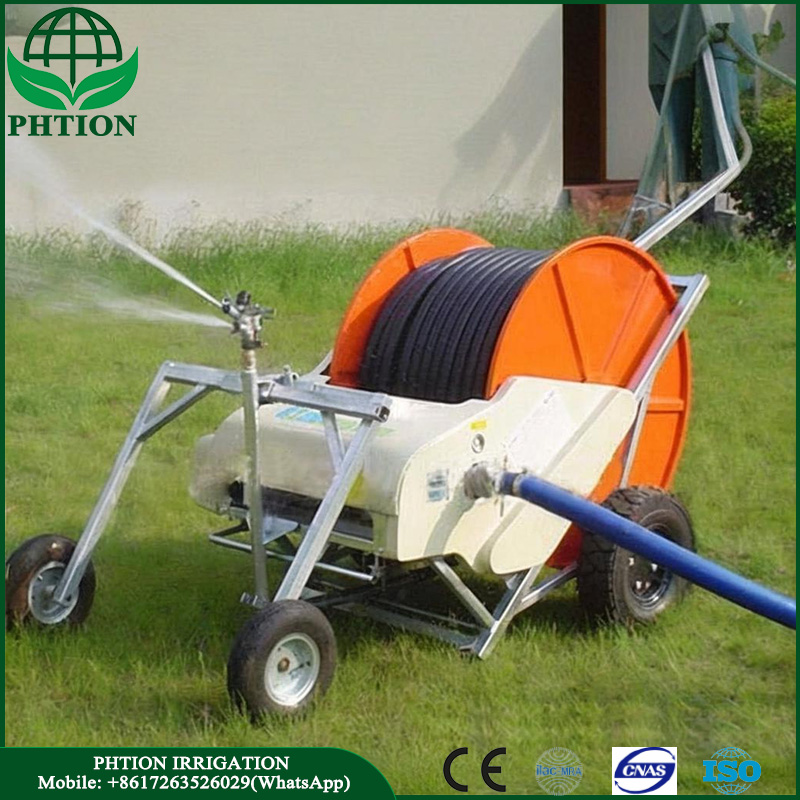

Medium Reel Sprinkler

Medium-sized reel sprinkler is an efficient and flexible irrigation equipment, widely used in farmland irrigation, garden irrigation, greening spraying and other fields. ‌ It has the advantages of high efficiency, water saving, environmental protection, flexibility, etc., can achieve all-round spraying, wide coverage area and uniform spraying, and improves irrigation efficiency.

- 1.PE pipe diameter: 65~90mm
- 2.Nozzle working pressure: 0.2-0.6MPa
- 3.Nozzle diameter: 14-26mm
- 4.Flow rate: 11-52m/h
- 5.Range: 28-52m
- 6.Spraying width: 47-90m
- 7.Nozzle vehicle height: 1300mm
- 8.Ground clearance: 300mm

✉ E-mail: [email protected] ☎ Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5 Years

[email protected] +8615515596408

Category: HDPE Pipeline System

✦Description of Medium Reel Sprinkler

The medium-sized reel sprinkler mainly includes JP65, 75, and 90 series. It uses a variety of driving methods such as water turbines (sprinkler pressure water drive), internal combustion engines, hydraulic Mazda, and electric motors to rotate. The speed change device drives the winch to rotate and pulls the water spray frame to automatically move and spray. According to the different nozzles, it is usually divided into two types: spray gun type and frame type. The walking sprinkler has the advantages of convenient movement, simple operation, labor and time saving, good water saving effect, and uniform spraying. It can effectively provide the required water and increase crop yields. The medium-sized reel sprinkler has a simple structure, a high degree of automation, and strong adaptability. Its wheelbase and height from the ground can be adjusted and customized according to the row spacing and height of the crop. It can also walk in densely planted fields, and can realize spraying irrigation operations. It is a water-saving irrigation machine. The medium-sized reel sprinkler also has the function of preventing soil moisture loss, which can effectively prevent the evaporation loss of irrigation water, thereby improving the utilization rate of irrigation water and saving irrigation water. Therefore, medium-sized reel sprinklers are of great significance in the field of agricultural irrigation.

✦Advantages of Medium Reel Sprinkler

‌Uniform irrigation‌ is conducive to improving the yield and quality of farmland crops. The amount of water can be adjusted according to the size of the farmland to achieve on-demand distribution. ‌Save water resources‌. Compared with traditional irrigation methods, reel sprinklers can significantly reduce the amount of water used. ‌Widely used‌, suitable for various crops and uneven land, reducing irrigation costs. ‌Easy to operate‌, easy to manage, can reduce labor intensity and improve work efficiency. High-pressure water flow PE pipe, impact resistance, crack resistance, aging resistance, and corrosion resistance. The water outlet has sufficient water flow and is easy to open and close.

Please Send Email: [email protected] or Mobile(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of Medium Reel Sprinkler

Project	Unit	Series model
Project	Unit	JP32 JP32/D	JP40 JP40/D	JP50 JP50/D	JP65 JP65/D	JP75 JP75/D	JP90 JP90/D	JP110 JP110N	JP125/Y
PE pipe diameter	mm	32	40	50	65	75	90	110	125
PE pipe length	m	70-100	90-120	150-250	200-350	250-450	300-450	300-500	200-330
into the machine working pressure	MPa	0.3-0.5D /0.2-0.4/	0.3-0.6D /0.25-0.5/	0.4-0.78D/ 0.35-0.68/	0.5-1.0D/ 0.4-0.9/	0.5-1.0D/ 0.4-0.9/	0.5-1.0D/ 0.4-0.9/	0.55-1.25 Y/0.5-1.0 N/0.5-1.0	0.55-1.25 Y/0.5-1.0 N/0.5-1.0
nozzle pressure	MPa	0.15-0.3	0.15-0.3	0.2-0.4	0.2-0.6	0.3-0.6	0.4-0.6	0.5-0.8	0.5-0.8
nozzle diameter	mm	6-10	8-12	9-16	14-18	16-22	20-26	24-32	28-36
flow rate	m‘/h	3-6	5-9	5-19.7	11-31	13-38	17-52	45-106	68-130
range	m	12-18	12-18	19-30	28-43	28-43	35-52	45-68	55-72
spray width	m	20-30	20-30	32-51	47-74	47-74	60-90	77-116	95-124
combination uniformity coefficient	%	≥85	≥85	≥85	≥85	≥85	≥85	≥85	≥85
project		series model
project	unit	JP32 JP32/D	JP40 JP40/D	JP50 JP50/D	JP65 JP65/D	JP75 JP75/D	JP90 JP90/D	JP110 JP110Y	JP125/Y
interlayer velocity difference	%	<20 D/<15	<20 D/<15	<20 D/<15	<20 D/<15	<20 D/<15	<20 D/<15	<20 Y/<15 N/<15	<15 N/<15
precipitation	mm	5-30	5-30	6-44	8-50	8-50	8-50	7.3-92	10-100
nozzle type	/	PYK20	PYK30	PYK40	PYC50	PYC50	PYC50	PYC75	PYC75
nozzle height	mm	800	800	1000- 1800	1300- 2800	1300- 2800	1300- 2800	2000- 3000	2000- 3000
nozzle car track	mm	300	500	600	1300	1300	1300	1300- 1500	1300- 1500
car climbing	%	20	20	20	20	20	20	20	20
traction height	mm	/	/	300	300- 500	300- 500	300- 500	300- 500	300- 550
ground clearance	mm	200	200	300	300	300	300	300	300
chassis	/	4.00-8	2050-8	2045-12	165/70 R-13	185R 14c	10.0/80 -12	10.0/75 -15.3	10.0/75 -15.3
wheel tire rim maximum width	mm	840	1030	1580	2000	2000	2310	2400	2510
Note:spray pattern ,single spray gun.Drivemode,D-power drive,Y-hydraulicdrive,N-internal combustion engine drive.

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Application of Medium Reel Sprinkler

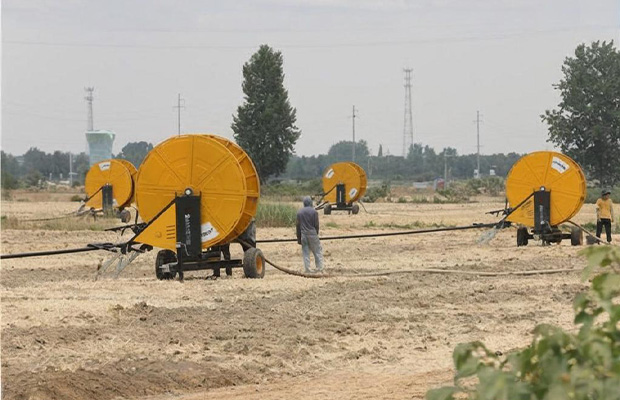

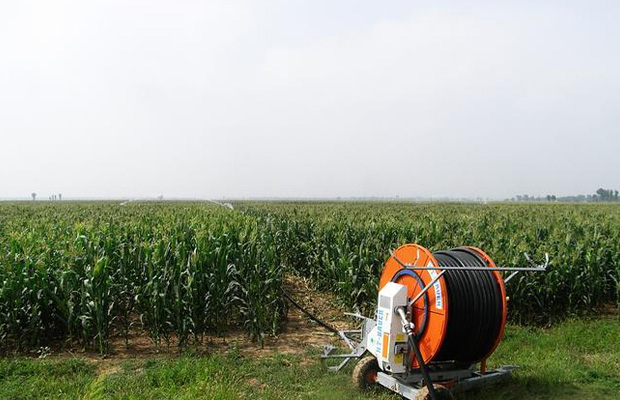

Medium-sized reel sprinkler for wheat field irrigation	Medium-sized reel sprinkler for corn irrigation

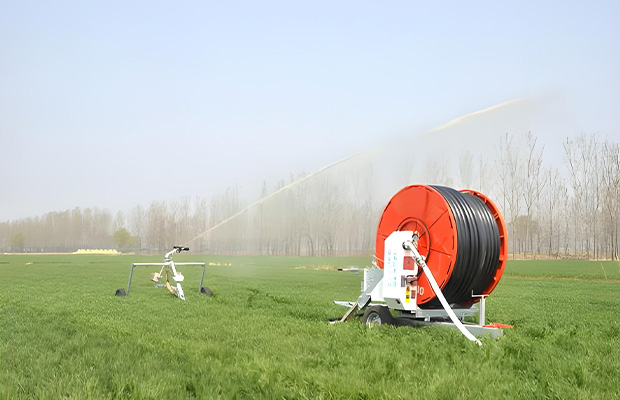

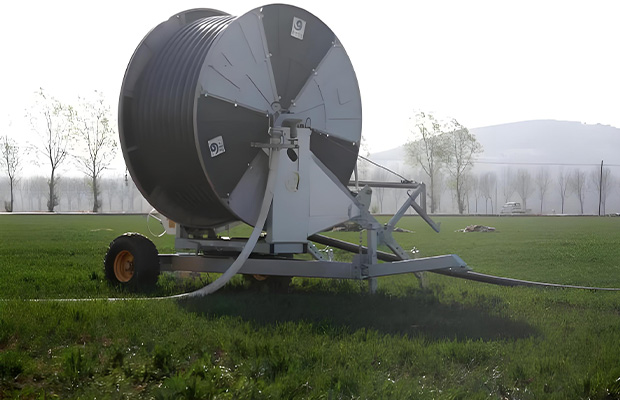

Medium-sized reel sprinkler for farmland irrigation	Medium-sized reel sprinkler for crop irrigation
