Underground Rotary Sprinkler

Underground rotary sprinkler is an irrigation device installed underground. Its main body is hidden below the ground, and only the water spraying parts are exposed when working. It drives the internal mechanical structure to rotate through high-pressure water flow to achieve uniform and extensive water mist spraying. It is suitable for a variety of irrigation scenarios such as lawns, gardens, sports fields, orchards, and farmlands.

- 1.Material: Plastic
- 2.Connection method: Internal thread connection
- 3.Medium: Irrigation
- 4.Working pressure: Normal pressure
- 5.Flow rate: 0.17-2.19 m³/h
- 6.Spray diameter: 7.6-15.2 m
- 7.Irrigation angle: 40°-360°

✉ E-mail: [email protected] ☎ Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5 Years

[email protected] +8615515596408

Category: Surface Irrigation Systems

✦Description of Underground Rotary Sprinkler

The underground rotary sprinkler usually consists of a nozzle, a rotating mechanism, a drive device, and a filter. When working, the water source enters the nozzle at a certain pressure after being purified by the filter. The high-pressure water flow drives the rotating mechanism to rotate, and the nozzle cuts the water flow into fine droplets and sprays them out, forming an umbrella-shaped or full-circle spraying pattern. The rotation speed and spraying range can be controlled by adjusting the internal mechanical structure or external controller to meet different irrigation needs.

✦Advantages of underground rotary sprinklers

Water saving: Compared with traditional irrigation methods, underground rotary sprinklers greatly improve the utilization rate of water resources and reduce waste by controlling the amount of water and the spraying range. Hidden and beautiful: Installed underground, it does not affect the ground landscape design and is particularly suitable for places with high landscape requirements. Uniform irrigation: Rotary spraying ensures that every inch of land in the irrigation area can be evenly supplied with water, which is conducive to the healthy growth of plants. Good durability: Since most components are located underground, they are not easily damaged by human beings, which reduces maintenance costs and improves the durability and service life of the equipment. Easy maintenance: Most underground rotary sprinklers are designed with easy-to-disassemble structures for regular cleaning and maintenance.

✦Selection and installation precautions

When selecting an underground rotary sprinkler, you need to consider factors such as irrigation area, soil type, water source pressure, and select the appropriate working range, spraying mode, and material according to actual needs. During installation, ensure that the ground is flat and accurately positioned according to the design drawings to avoid inconvenience during future maintenance. At the same time, pressure testing and spraying effect inspection should be carried out after installation to ensure that each sprinkler can work properly.

Please Send Email: [email protected] or Mobile(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of underground rotary sprinklers

Product name	Underground rotary sprinkler
Connection method	Internal thread connection
Flow rate	0.17-2.19 m³/h
Working pressure	1.7-4.5 bar
Interface	3/4‘’ internal thread interface
Top exposed diameter	41mm
Overall height	185mm
Pop-up height	100mm
Thread diameter	25mm
Range radius	7.6-15.2m

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Application of underground rotary sprinklers

Landscaping: irrigation of public green spaces such as parks, communities, campuses, and golf courses. Agricultural planting: irrigation of orchards, vegetable greenhouses, and field crops. Sports venues: areas that require fine irrigation, such as football fields and golf course greens. Private gardens: garden irrigation of villas and private residences to improve the quality of life.

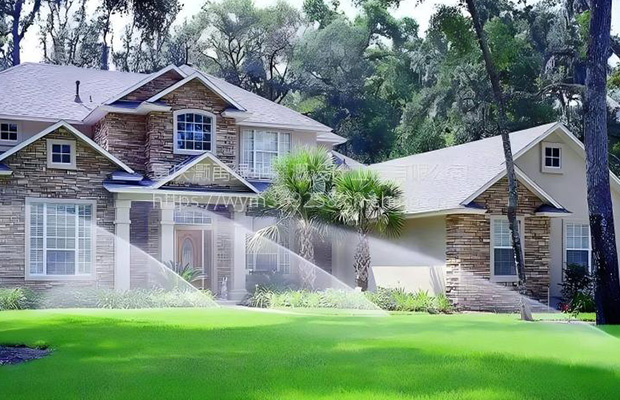

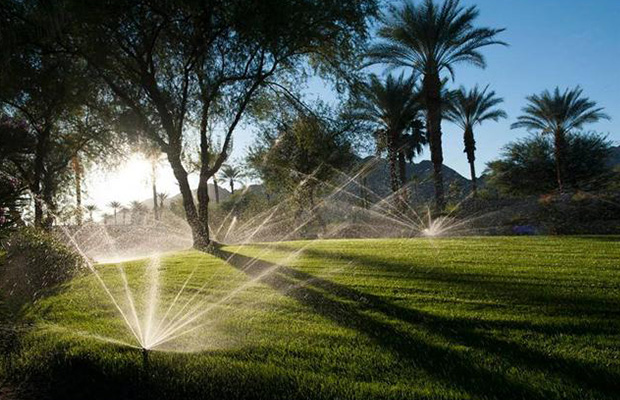

Underground rotary sprinklers for golf courses	Underground rotary sprinklers for villa irrigation

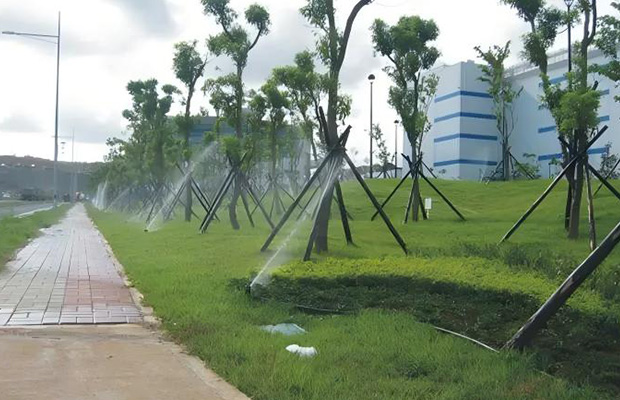

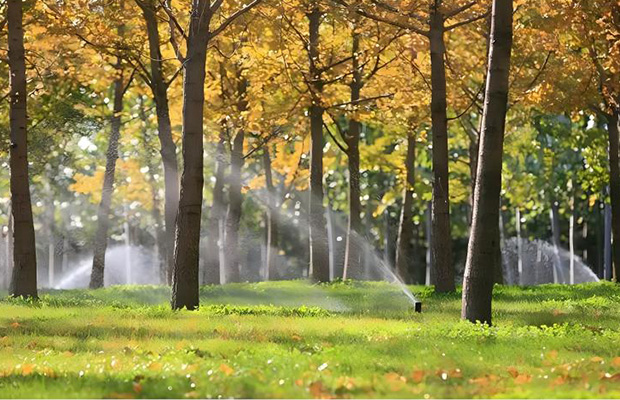

Underground rotary sprinklers for park greening	Underground rotary sprinklers for community greening
