Aluminium Alloy Rocker Arm Sprinkler Head

Aluminium Alloy Rocker Arm Sprinkler Head

Aluminium Alloy Rocker Arm Sprinkler Head, can adjust the spray direction and distance, very suitable for various slopes, places with sandblasting distance and angle requirements.

    • 1.Connection size: 4 points DN15, 6 points DN20
    • 2.Connection method: threaded connection
    • 3.Working pressure range: 0.2-0.4mpa
    • 4.Flow rate: 2~3.5m³/h
    • 5.Range diameter: 10-20m
    • 6. Sandblasting angle: 360° adjustable

E-mail: [email protected]            Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated                         ✧Global Transportation Service
✧Free samples& Free Design                             ✧Full Satisfaction Guaranteed: 5 Years

Category:

✦Detailed Features of Aluminium Alloy Rocker Arm Sprinkler Head

1. Spray evenly: The left and right rocker arms swing left and right under the impact of water to break up the water column sprayed from the water nozzle. 2. Seiko quality: The product is made of excellent materials and uses stainless steel springs for a long service life. 3. Flexible rotation: The product has a simple structure, conditional design, and easy installation. The rocker arm has flexible impact drive, advanced anti-rotation device, and flexible rotation. The irrigation spray distance is limited by many factors such as water pump model, water pump pressure, and water supply pipe diameter. Using water pumps with different parameters will result in different spray distances.

✦1. How to adjust the control range and angle of water spraying?

We pull the “automatic reverse control ring” outward and upward. At this time, when the sprinkler rotates, it will rotate 360 ​​degrees. To control the size of the vegetation area, just pull down the “automatic return control ring” and then pull the “limit ring” angle to adjust the desired sprinkler irrigation range. After the sprinkler is adjusted to the control angle, the gravity rocker arm and the stainless steel elastic wing will vibrate back and forth under the impact of water during the sprinkler irrigation operation, forming back and forth knocking and workmanship. This is how the sprinkler rotates automatically. During the sprinkler operation, after the sprinkler automatically rotates to the adjusted control angle point, the reversing pull rod and the return control rod will hit the limit ring and then quickly rotate back under the vibration of the rocker arm. This is how the sprinkler works back and forth.

✦2. How to adjust the distance of water spraying to make it farther or closer, and more scattered?

We only need to adjust the stainless steel water divider, and move the stainless steel water retaining plate up or down to cover the water head, so that the water can be sprayed closer. If we want to make the water spray more scattered, we only need to turn the “adjustment screw” clockwise or counterclockwise to turn the adjustment screw to disperse the water. The above are all relatively easy to deal with. If you don’t know how to adjust after reading these, you can contact us by phone and we will guide you by phone. [contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of Aluminium Alloy Rocker Arm Sprinkler Head

Name Titanium alloy rocker arm sprinkler
Specifications 4”(DN15mm), 6 ”(DN20mm)
Connection method External thread connection
Material The main body of the sprinkler is made of aluminum alloy, with a painted exterior
Working pressure PN2.2-4.5 water pressure
Water spray volume 0.84-1.62  m³/h
Spray diameter 10-20 meters
Nozzle features Adjustable spray direction and spray distance, suitable for various slopes, occasions with spraying distance and angle requirements
Purpose Mainly suitable for agricultural sprinkler irrigation of field vegetable seedlings, horticultural sprinkler irrigation of lawn greening, roof cooling, mine dust removal, etc.
Remarks It is not recommended to connect directly to tap water, the pressure will not be enough. It is recommended to add a booster pump!
Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Application of Aluminium Alloy Rocker Arm Sprinkler Head

Aluminium alloy rocker arm sprinkler is mainly used in agriculture, lawn, villa, industrial irrigation! Easy to install, good water-saving performance! Generally use tap water type (2.2 kg-4.5 kg) low water pressure sprinkler! Adjustable direction (45 to 360 degrees) rotation spray, spraying distance can also be adjusted.

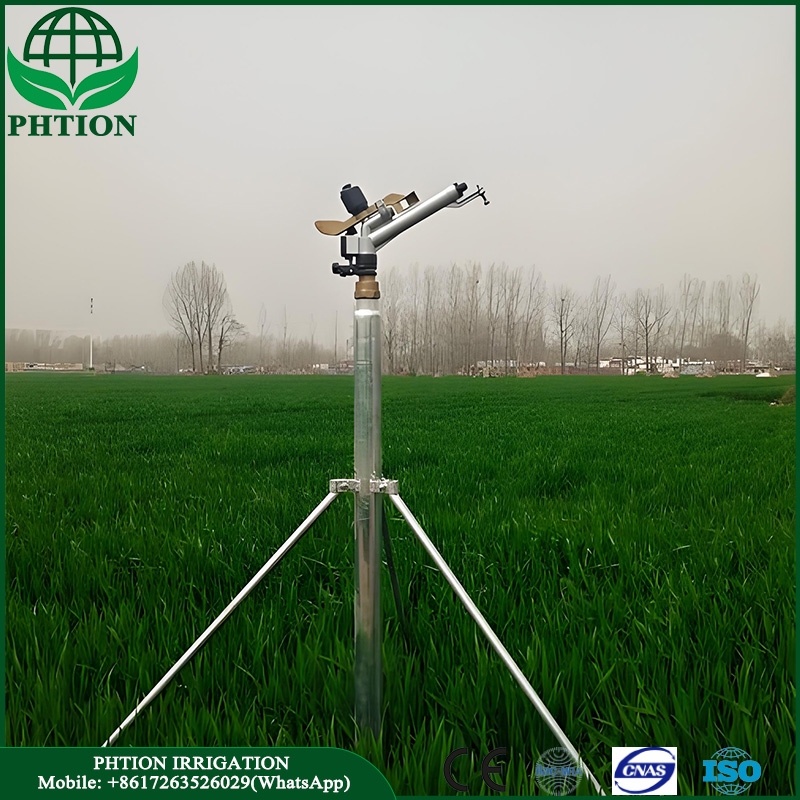

Aluminium Alloy Rocker Arm Sprinkler Head Aluminium Alloy Rocker Arm Sprinkler Head
Aluminium alloy rocker arm sprinkler for agricultural irrigation Aluminium alloy rocker arm sprinkler for horticultural irrigation
Aluminium Alloy Rocker Arm Sprinkler Head Aluminium Alloy Rocker Arm Sprinkler Head
Aluminium alloy rocker arm sprinkler for lawn greening Aluminium alloy rocker arm sprinkler for garden irrigation‌
