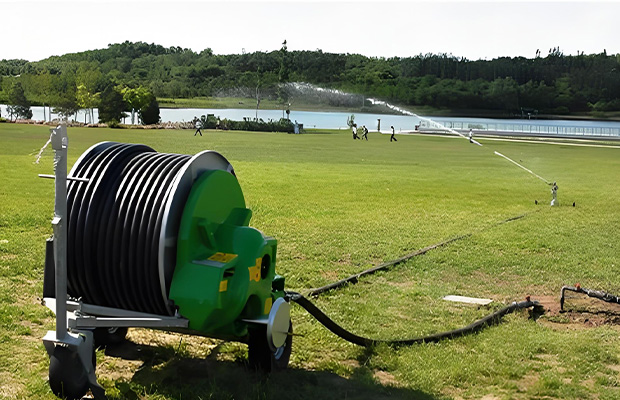

Light Reel Sprinkler

‌Light reel sprinkler is an irrigation machine, mainly used for irrigation of large areas of farmland. ‌It realizes irrigation by winding the hose and pulling the long-range sprinkler on the reel, so that the sprinkler moves along the operation route during the sprinkler irrigation process. ‌

- 1.PE pipe diameter: 40~50mm
- 2.Nozzle working pressure: 0.15-0.4MPa
- 3.Nozzle diameter: 8-16mm
- 4.Flow rate: 5-19.7m/h
- 5.Range: 12-30m
- 6.Spraying width: 20-51m
- 7.Sprinkler vehicle height: 500-600mm
- 8.Ground clearance: 200-300mm

✉ E-mail: [email protected] ☎ Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated ✧Global Transportation Service
✧Free samples& Free Design ✧Full Satisfaction Guaranteed: 5 Years

[email protected] +8615515596408

Category: HDPE Pipeline System

✦Description of Light Reel Sprinkler

Light reel sprinklers mainly include: JP40 and 50 series, with drive modes of water turbine drive, hydraulic drive and internal combustion engine drive; the whole machine is intelligently controlled, easy to operate, and can automatically control the PE pipe recovery and travel system according to the set program, effectively control different irrigation water volumes, save energy consumption, high sprinkler quality, good atomization effect, water saving, labor saving, time saving, and strong adaptability. It is conducive to the transformation of my country’s agricultural production mode, and improves the scale of agricultural efficient water-saving irrigation equipment and the level of intensive operation. It is suitable for large-scale grain production areas and large farms in Xinjiang, Tibet, Inner Mongolia and Northeast my country. The light reel sprinkler series uses a variety of drive modes such as water turbine (sprinkler pressure water drive), internal combustion engine, hydraulic Mazda, electric motor, etc. to rotate, and the speed change device drives the winch to rotate and pulls the water spray frame to automatically move and spray. According to the different nozzles, it is usually divided into two types: spray gun type and frame type. The traveling sprinkler truck has the advantages of easy mobility, simple operation, labor-saving and time-saving, good water-saving effect, and uniform spraying. It can effectively provide the required water and increase crop yields.

✦Advantages of Light Reel Sprinkler

1. Even sprinkler irrigation is conducive to improving the yield and quality of farmland crops. The amount of water can be adjusted according to the size of the farmland to achieve on-demand distribution. 2. Save water resources. Compared with traditional irrigation methods, the reel sprinkler can significantly reduce the amount of water used. 3. Widely used, suitable for various crops and uneven land, reducing irrigation costs. 4. Easy to operate and manage, it can reduce labor intensity and improve work efficiency. 5. High-pressure water flow PE pipe, impact resistance, crack resistance, aging resistance, and corrosion resistance. 6. The water outlet has sufficient water flow and is easy to open and close.

Please Send Email: [email protected] or Mobile(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of Light Reel Sprinkler

Project	Unit	series model
Project	Unit	JP32 JP32/D	JP40 JP40/D	JP50 JP50/D	JP65 JP65/D	JP75 JP75/D	JP90 JP90/D	JP110 JP110N	JP125/Y
PE pipe diameter	mm	32	40	50	65	75	90	110	125
PE pipe length	m	70-100	90-120	150-250	200-350	250-450	300-450	300-500	200-330
into the machine working pressure	MPa	0.3-0.5D /0.2-0.4/	0.3-0.6D /0.25-0.5/	0.4-0.78D/ 0.35-0.68/	0.5-1.0D/ 0.4-0.9/	0.5-1.0D/ 0.4-0.9/	0.5-1.0D/ 0.4-0.9/	0.55-1.25 Y/0.5-1.0 N/0.5-1.0	0.55-1.25 Y/0.5-1.0 N/0.5-1.0
nozzle pressure	MPa	0.15-0.3	0.15-0.3	0.2-0.4	0.2-0.6	0.3-0.6	0.4-0.6	0.5-0.8	0.5-0.8
nozzle diameter	mm	6-10	8-12	9-16	14-18	16-22	20-26	24-32	28-36
flow rate	m‘/h	3-6	5-9	5-19.7	11-31	13-38	17-52	45-106	68-130
range	m	12-18	12-18	19-30	28-43	28-43	35-52	45-68	55-72
spray width	m	20-30	20-30	32-51	47-74	47-74	60-90	77-116	95-124
combination uniformity coefficient	%	≥85	≥85	≥85	≥85	≥85	≥85	≥85	≥85
project		series model
project	unit	JP32 JP32/D	JP40 JP40/D	JP50 JP50/D	JP65 JP65/D	JP75 JP75/D	JP90 JP90/D	JP110 JP110Y	JP125/Y
interlayer velocity difference	%	<20 D/<15	<20 D/<15	<20 D/<15	<20 D/<15	<20 D/<15	<20 D/<15	<20 Y/<15 N/<15	<15 N/<15
precipitation	mm	5-30	5-30	6-44	8-50	8-50	8-50	7.3-92	10-100
nozzle type	/	PYK20	PYK30	PYK40	PYC50	PYC50	PYC50	PYC75	PYC75
nozzle height	mm	800	800	1000- 1800	1300- 2800	1300- 2800	1300- 2800	2000- 3000	2000- 3000
nozzle car track	mm	300	500	600	1300	1300	1300	1300- 1500	1300- 1500
car climbing	%	20	20	20	20	20	20	20	20
traction height	mm	/	/	300	300- 500	300- 500	300- 500	300- 500	300- 550
ground clearance	mm	200	200	300	300	300	300	300	300
chassis	/	4.00-8	150-8	145-12	165/70 R-13	185R 14c	10.0/80 -12	10.0/75 -15.3	10.0/75 -15.3
wheel tire rim maximum width	mm	840	1030	1580	2000	2000	2310	2400	2510
Note:spray pattern ,single spray gun.Drivemode,D-power drive,Y-hydraulicdrive,N-internal combustion engine drive.

Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Application of Light Reel Sprinkler

Light reel sprinkler is a new type of sprinkler equipment. It uses a reel method to irrigate. Light reel sprinkler can realize automation of sprinkler irrigation and can be flexibly adjusted according to the growth conditions of plants. It is mainly used in the field of agricultural irrigation, especially in the irrigation of large, medium and small crops, gardens, urban greening, fruits and vegetables, tea, forage, tobacco, sugarcane, as well as power plants, docks, construction sites, coal mine dust removal and other fields. Drive mode: water turbine drive. Hydraulic drive, electric drive, internal combustion engine drive. ‌ In summary, light reel sprinkler, especially in occasions where large-scale irrigation is required, such as irrigation of large areas of farmland, can significantly improve irrigation efficiency and water resource utilization, which is of great significance to promoting agricultural production.


Light reel sprinkler for crop irrigation	Light reel sprinkler for green irrigation

Light reel sprinkler for vegetable irrigation	Light reel sprinkler for lawn irrigation
