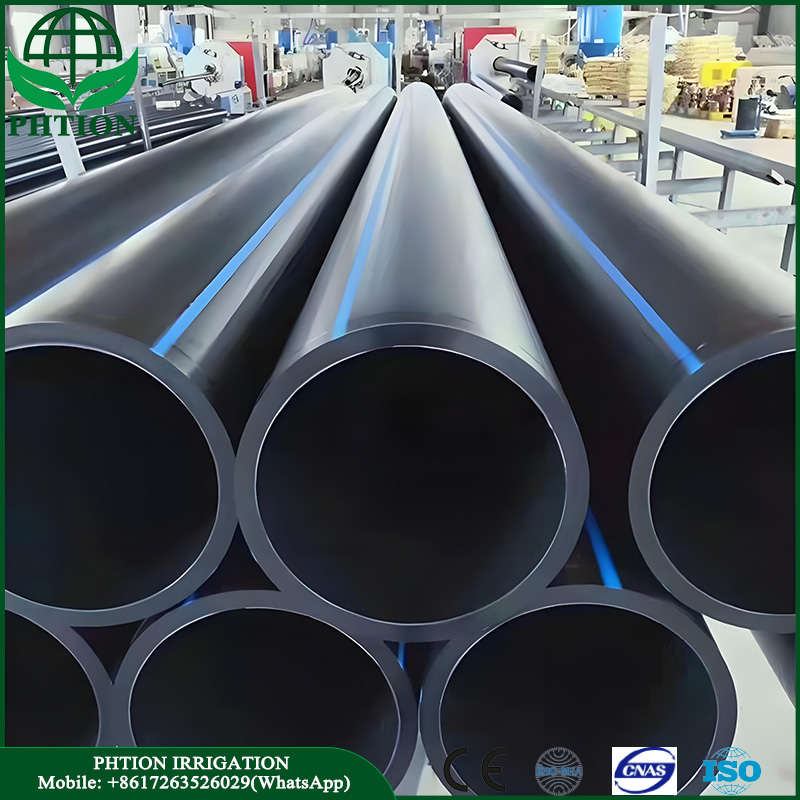

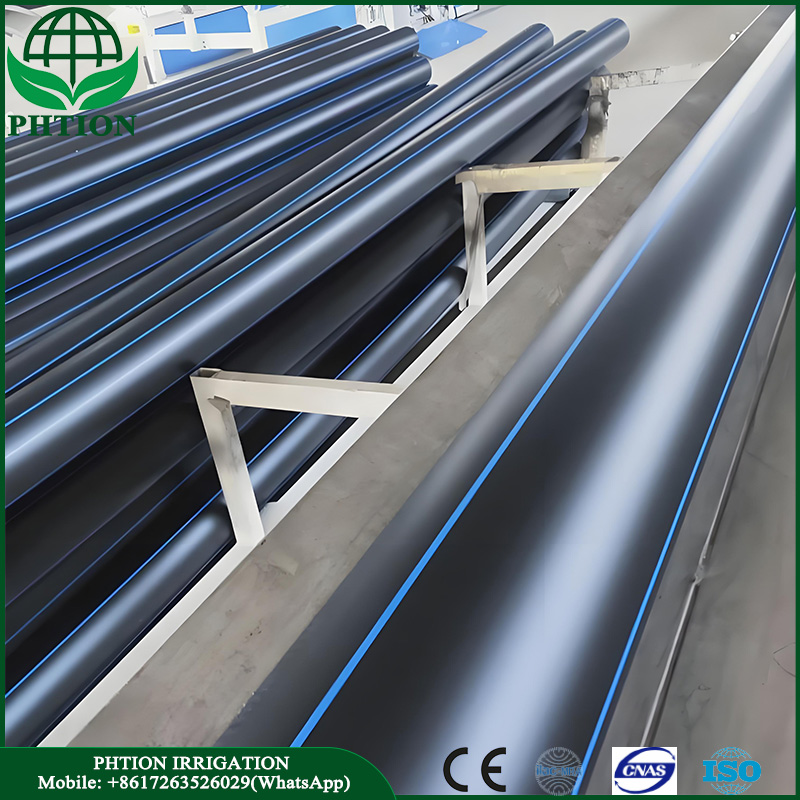

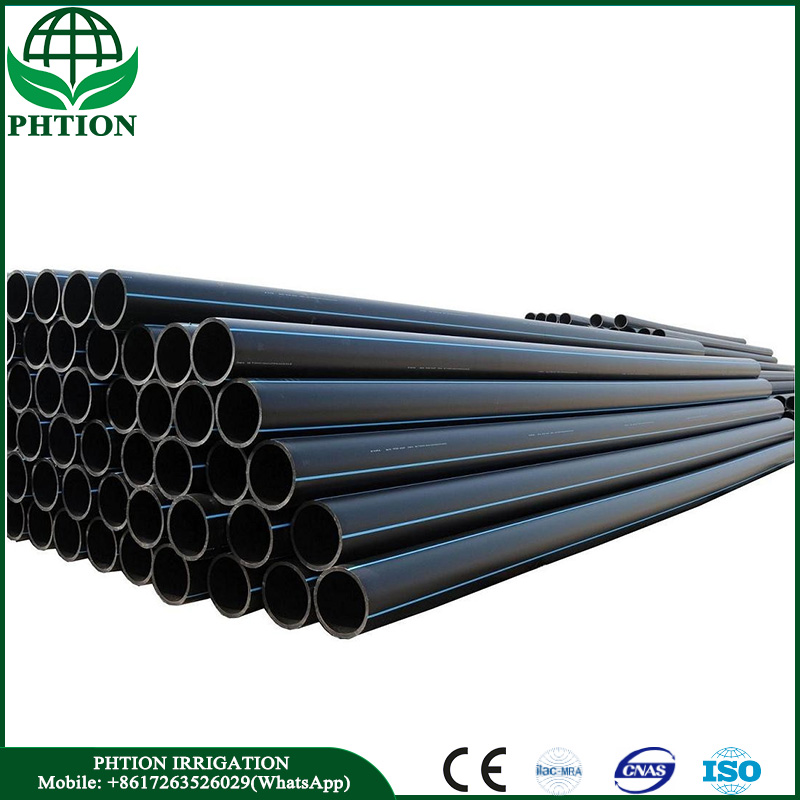

PE irrigation pipe

PE irrigation pipe

PE irrigation pipes can withstand temperatures from -30˚C to +60˚C, maintaining the durability of the pipes and resisting the effects of the sun.

    • 1.Pipe diameter: OD20-2500mm

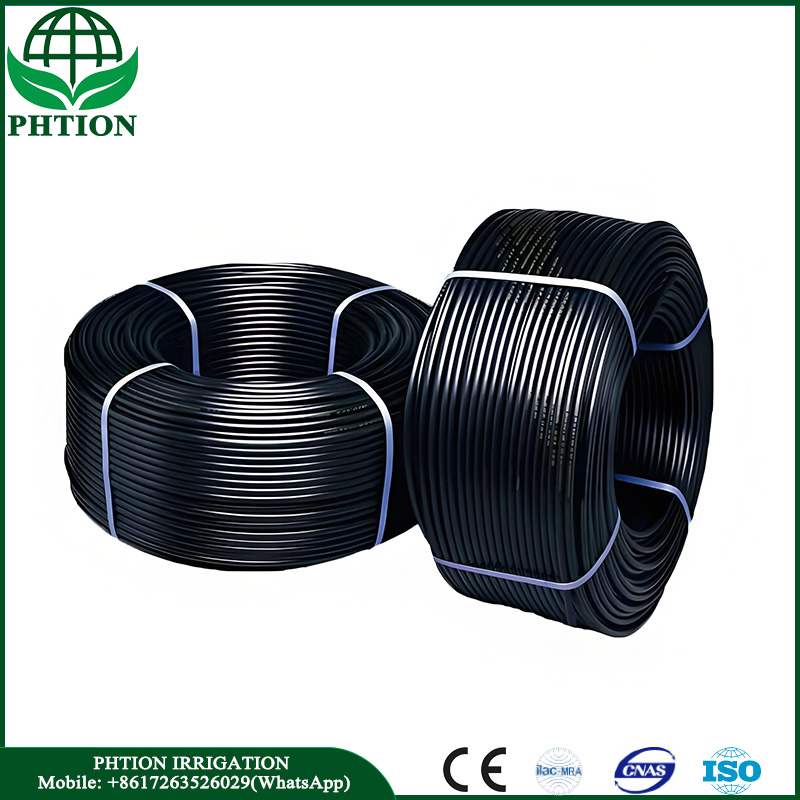

    • 2.Packing size: DN20-32mm is 200 meters/roll, DN32-63mm is 100 meters/roll, DN75-DN2500mm is 5.8/11.8 meters in length
    • 3.PN: PN32, PN25, PN20, PN16, PN12.5, PN10, PN8, PN6, PN5, PN4
    • 4.Raw material: PE63, PE80, PE100, PE4710, PE3608, PE3408, PE100RC
    • 5.Implementation standards: ISO 4427, EN12201, AS/NZS4130, ASTM 3035, DIN8074, GOST18599, DIPS, ASTM F714, ISO4437, EN1555, AS/NZS4130
    • 6.Delivery time: 10-20 days, depending on the total order quantity

E-mail: [email protected]            Mobile: +8615515596408(WhatsApp/Wechat)
EXTRA VALUABLE SERVICE
✧High Quality: ISO certificated                         ✧Global Transportation Service
✧Free samples& Free Design                             ✧Full Satisfaction Guaranteed: 5 Years

Category:

✦Description of PE irrigation pipe

PE pipe is a pipe made of medium, low, and high-density polyethylene. It is an ideal choice for farmland irrigation due to its excellent corrosion resistance, impact resistance, low water flow resistance, good flexibility, convenient installation method, long service life, environmental protection characteristics and good low temperature performance. If PE pipe is used as the main pipeline for long-distance water transportation, the main factors to be considered are the water source, destination and transportation system. Ponds, reservoirs, or lakes are usually better water source options because they can more easily maintain the required amount of water than other options. Especially during rainy seasons and droughts, the flow of rivers is uncertain. Without a proper irrigation system, this unstable climate will have an adverse effect on crops. Pure natural substances that have been processed can be added to PE irrigation pipes. Various nutrients are dissolved during the water flow process to chemically transform water nutrients. Under plant photosynthesis, the accumulation of nutrients in food crops is improved, providing sufficient nutrients for crops. Antibacterial agents can be added to pipes to inhibit the growth of harmful microorganisms such as Escherichia coli and improve the quality of agricultural products.

✦Advantages of HDPE pipes in agricultural irrigation

Corrosion resistance: HDPE pipes have excellent chemical stability and can resist erosion by a variety of chemicals, including chemicals in the soil. This allows HDPE pipes to be used for a long time in agricultural irrigation, reducing the frequency of pipe damage and repairs, and ensuring the stable operation of the irrigation system. High strength and excellent pressure resistance: HDPE pipes have high strength and pressure resistance, can withstand high pressure and gravity during agricultural irrigation, and are not easy to deform and damage. This excellent mechanical property enables HDPE pipes to adapt to complex terrain and climatic conditions, ensuring the stability and safety of the irrigation system. Light weight and easy installation: Compared with traditional pipe materials, HDPE pipes have lighter weight, making transportation and installation more convenient. This reduces the construction cost of agricultural irrigation systems and improves construction efficiency. Low water flow resistance: HDPE pipes have a smooth inner surface, which reduces water flow resistance and improves irrigation efficiency. This helps save water resources, reduce irrigation costs, and ensure that crops are adequately supplied with water. Low-temperature resistance: HDPE irrigation pipes have a wide operating temperature range and can be used normally in an environment of minus 20 degrees to 60 degrees without cracking or bursting. This gives HDPE pipes unique advantages in agricultural irrigation in cold regions. Long service life: HDPE pipes have an excellent service life, which can ensure the long-term stable operation of orchard irrigation and drainage systems, reduce the frequency of pipe replacement, and reduce operating costs. Environmental performance: HDPE pipes do not add heavy metal stabilizers during processing, and the materials are non-toxic and harmless. It is a green and environmentally friendly pipe material. In addition, HDPE pipes themselves can be recycled and will not pollute the environment, which meets the requirements of sustainable agricultural development. HDPE pipes can be customized with different pipe diameters and wall thicknesses according to specific needs to meet the flow and pressure requirements of different irrigation systems. This helps to achieve more precise irrigation control and reduce unnecessary waste. In summary, the water-saving effect of HDPE pipes in agricultural irrigation is mainly reflected in reducing the natural volatilization and leakage of water, improving irrigation uniformity, reducing water pump energy consumption, extending service life, simplifying construction and maintenance, etc. These advantages work together to make HDPE pipes a water-saving tool in the field of agricultural irrigation. [contact-form-7 id=”544″ title=”Contact Us”]

Technical data

✦Specification of PE irrigation pipe

ISO 4427 S 3.2 S 4 S 5 S 6,3 S 8 S 10 S 12,5 S 16 PE100
ASTM F714 DR 7.4 DR 9 DR 11 DR 13.6 DR 17 DR 21 DR 26 DR 33
PN PN 25 bar PN 20 bar PN 16 bar PN 12,5 bar PN 10 bar PN 8 bar PN 6 bar PN 5 bar
DN (mm) (Inch) Wall thickness (mm) Wall thickness (mm) Wall thickness (mm) Wall thickness (mm) Wall thickness (mm) Wall thickness (mm) Wall thickness (mm) Wall thickness (mm) DN (mm)
20 0.79 3.0 2.3 2.0 1.5 1.2 1.0 0.6 0.61 20
25 0.98 3.5 3.0 2.3 2.0 1.5 1.2 0.8 0.76 25
32 1.26 4.4 3.6 3.0 2.4 2.0 1.5 1.0 0.97 32
40 1.57 5.5 4.5 3.7 3.0 2.4 2.0 1.2 1.21 40
50 1.97 6.9 5.6 4.6 3.7 3.0 2.4 2.0 1.52 50
63 2.48 8.6 7.1 5.8 4.7 3.8 3.0 2.5 1.91 63
75 2.95 10.3 8.4 6.8 5.6 4.5 3.6 2.9 2.27 75
90 3.54 12.3 10.1 8.2 6.7 5.4 4.3 3.5 2.73 90
110 4.33 15.1 12.3 10.0 8.1 6.6 5.3 4.2 3.33 110
125 4.92 17.1 14.0 11.4 9.2 7.4 6.0 4.8 3.79 125
140 5.51 19.2 15.7 12.7 10.3 8.3 6.7 5.4 4.24 140
160 6.30 21.9 17.9 14.6 11.8 9.5 7.7 6.2 4.85 160
180 7.09 24.6 20.1 16.4 13.3 10.7 8.6 6.9 5.45 180
200 7.87 27.4 22.4 18.2 14.7 11.9 9.6 7.7 6.06 200
225 8.86 30.8 25.2 20.5 16.6 13.4 10.8 8.6 6.82 225
250 9.84 34.2 27.9 22.7 18.4 14.8 11.9 9.6 7.58 250
280 11.02 38.3 31.3 25.4 20.6 16.6 13.4 10.7 8.48 280
315 12.40 43.1 35.2 28.6 23.2 18.7 15.0 12.1 9.70 315
355 13.98 48.5 39.7 32.2 26.1 21.1 16.9 13.6 10.90 355
400 15.75 54.7 44.7 36.3 29.4 23.7 19.1 15.3 12.30 400
450 17.72 61.5 50.3 40.9 33.1 26.7 21.5 17.2 13.80 450
500 19.69 67.6 55.8 45.4 36.8 29.7 23.9 19.1 15.30 500
560 22.05 75.7 62.5 50.8 41.2 33.2 26.7 21.4 17.20 560
630 24.80 85.1 70.3 57.2 46.3 37.4 30.0 24.1 19.30 630
710 27.95 95.9 79.3 64.5 52.2 42.1 33.9 27.2 21.80 710
800 31.50 89.3 72.6 58.8 47.4 38.1 30.6 24.50 800
900 35.43 81.7 66.2 53.3 42.9 34.4 27.60 900
1000 39.37 90.2 72.5 59.3 47.7 38.2 30.60 1000
1200 47.24 88.2 67.9 57.2 45.9 36.70 1200
1400 55.12 102.9 82.4 66.7 53.5 42.90 1400
Other specifications have not been shown on our dimension chart, please CONTACT US for more information

Please Send Email: [email protected] or Mobile:(WhatsApp): +86 155 15596408.

[contact-form-7 id=”544″ title=”Contact Us”]

Application

✦Application of PE irrigation pipe

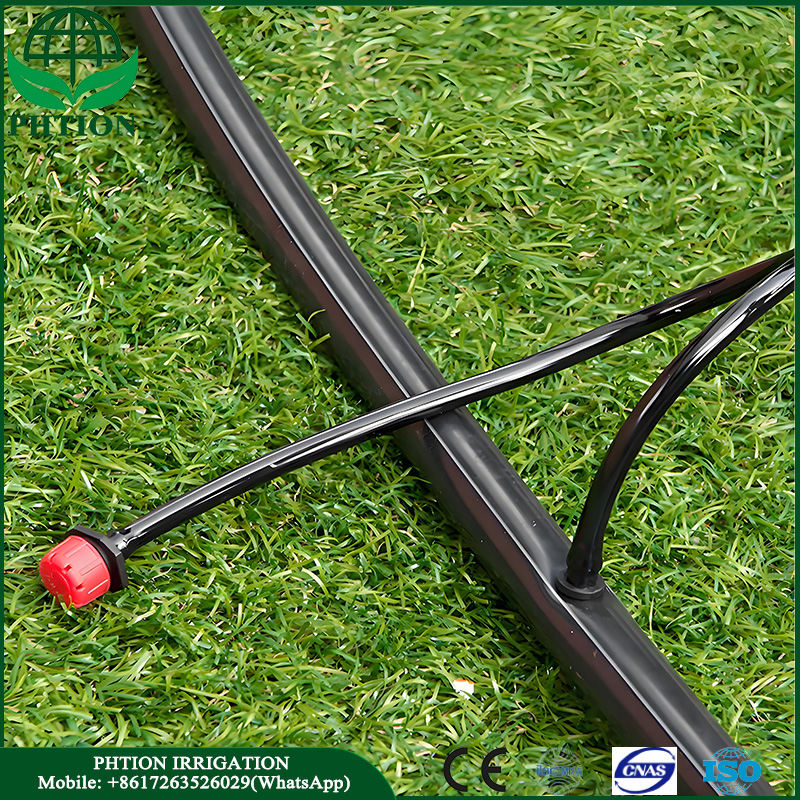

PE irrigation pipes can be perforated to connect micro sprinklers or drip irrigation equipment, or they can be used as main pipes, with a variety of specifications to choose from. These pipes are widely used in various micro irrigation systems, water delivery systems, sprinkler racks and civil projects, such as micro sprinklers, online smart drip irrigation, micro sprinklers, injectors and atomizers, etc. PE irrigation pipes can be used for agricultural irrigation projects, micro irrigation projects, spray irrigation projects, drain rack application projects, hydraulic automation irrigation projects, professional landscape irrigation projects, mine vegetation and its maintenance projects.
PE irrigation pipe PE irrigation pipe

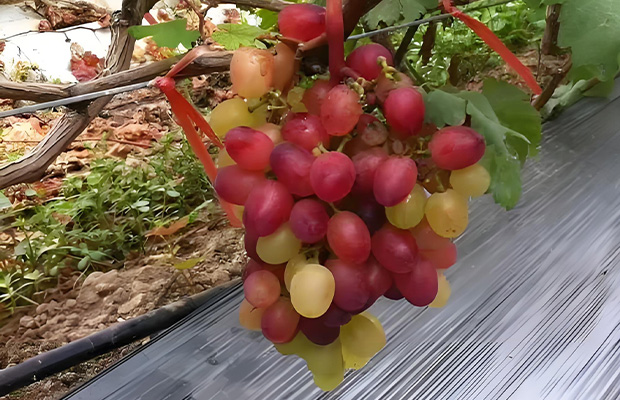

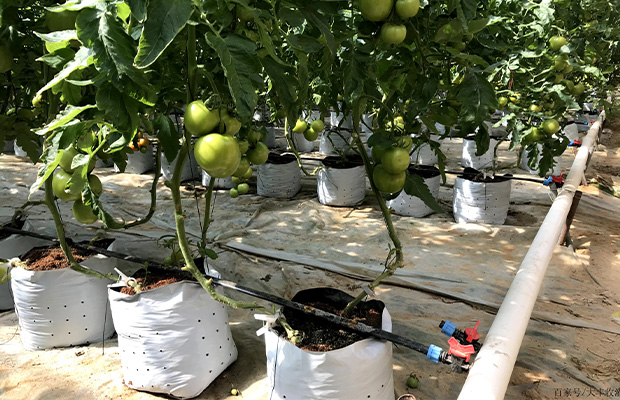

PE pipes for greenhouse irrigation PE pipes for fruit and vegetable irrigation
PE irrigation pipe PE irrigation pipe

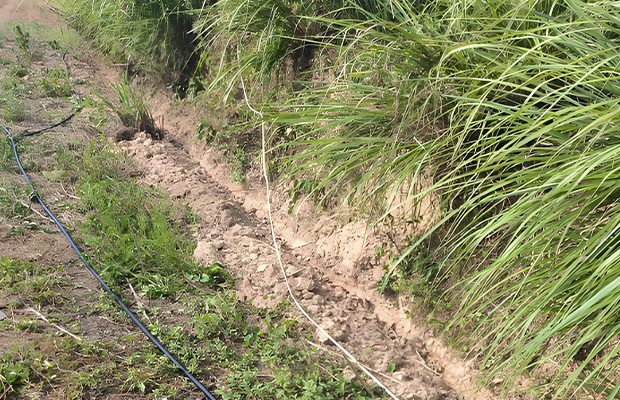

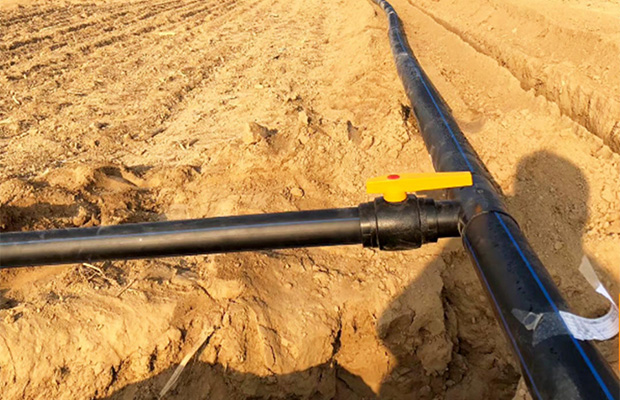

PE pipes for farmland irrigation PE pipes for grassland irrigation
